TB6-R10 is a more powerful industrial-grade co-robot, capable of automating tasks with payloads below 10KG, with a working radius of 1333mm. It is suitable for large-scale and large-load tasks. It can be used in factory automation, automotive, 3C, medical, electric power, aerospace, scientific research, education, and other industries, multi-scenario automation needs.
Weight37kg
Payload10kg

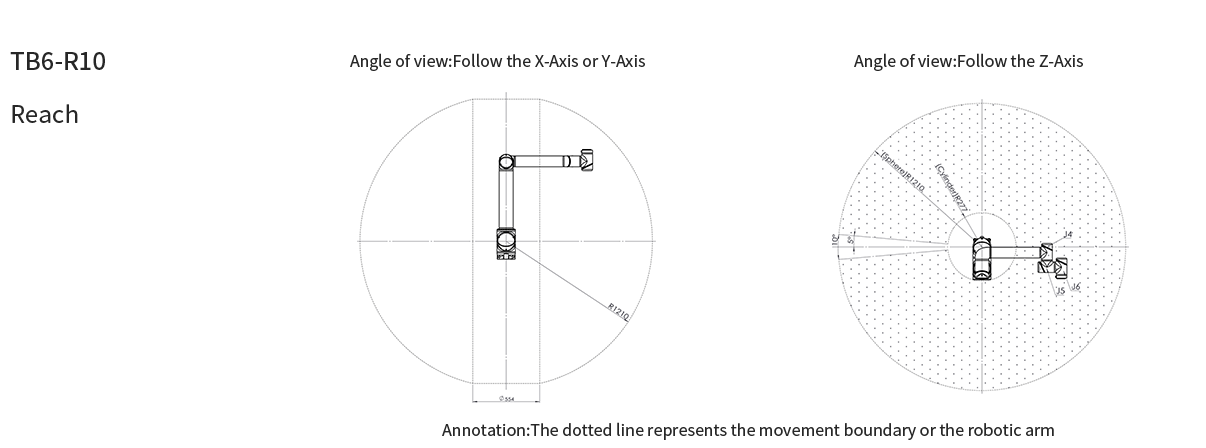

Reach1333mm
FootprintΦ148 mm
Repeatability±0.08mm
• To meet the higher load, a greater range of automated operations, both high load and high precision areas of work requirements.
• Modular joint design, quick disassembly, quick repair, and replacement.
• Compact appearance, arbitrary Angle installation, flexible deployment, easy to use
• Advanced drag demonstration and collision detection functions.
• Force sense collision detection, with high flexibility, high safety performance, and human-computer interaction, integration, and cooperation.
TB6-R10 Co-robot promotional video
| Repeatability | ±0.08mm |
| Ambient humidity range | 25-85%(Not condensable) |
| Ambient temperature range | -20-45℃ |
| Power consumption | 500w(Normal working condition） |
| Rated life | 30000h |
| Cooperative operation | Cooperative operation according to IOS10218-1: 2011, equipped with co-robot safety functions such as "safe and applicable monitored stop", "drag teaching", and "power and force limitation" |
| Degreen of freedom | 6 |
| Reach | 1333mm |
| Payload | 10kg |
| Programming | On the graphical user interface of the 7-inch touch screen teach pendant |
| Robot mounting | Any Orientation |
| Classification | IP64 |
| Noise | ≤60dB |
| Communication protocol | EtherCAT |
| Power supply | DC 48V |
| Weight | 37kg |
| Materials | Aluminum alloy |

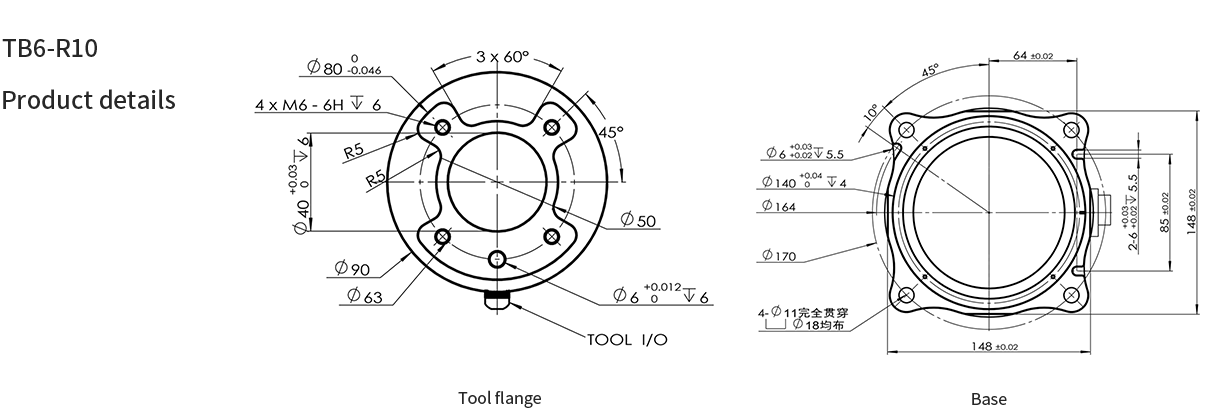

| Footprint | Φ148mm |
| Working range | Maximum speed | |
| J1-Base | ±175° | ±100° |
| J2-Shoulder | ±175° | ±100° |
| J3-Elbow | ±175° | ±130° |
| J4-Wrist1 | ±175° | ±160° |
| J5-Wrist2 | ±175° | ±160° |
| J6-Wrist3 | ±175° | ±160° |
| Typical Tcp speed | 3m/s | |
| I/O Voltage | continuous current | Ethercat Out |
| 24V | 1A | 1way |
| Size | 460*220*420mm |
| Weight | 10Kg |
| Cable length | 6m |
| Color | Gray |
| communication protocol | Ethernet , Modbus-RTU/TCP |
| Power supply | 100-240VAC，50 - 60Hz |
| classification | IP54 |
| Size | 265*185*50mm | |
| Weight | 1kg | |
| Display panel | 7inch resistive touch scree | |
| Cable length | 6m | |
| classification | IP54 | |
| Color | Black |
| Ordinary I/O | Safety I/O | |
| Digital input | 16 | 16 |
| Digital output | 16 | 16 |
| I/O Power supply | 24V 5A |
